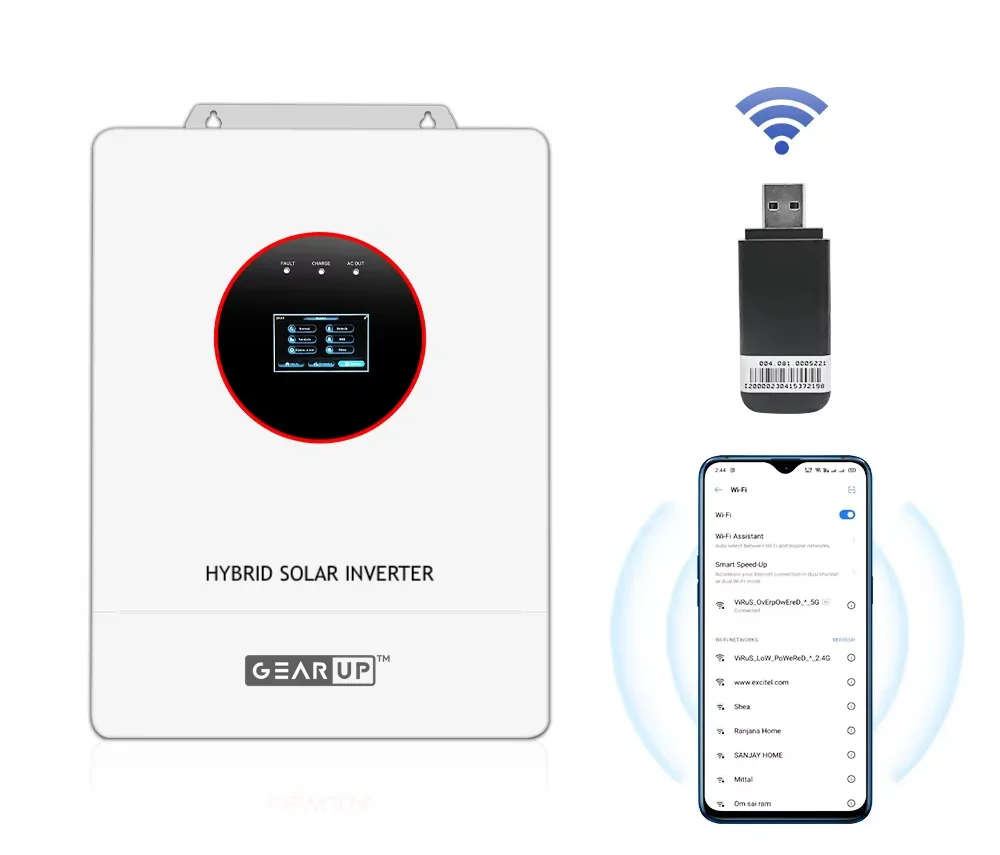

GearUP 2KW Hybrid Solar Inverter with 100A MPPT, 3000W PV, 12V Battery Pure Sine Wave High Frequency Inverter with WiFi Dongle

GearUP 2KW Hybrid Solar Inverter (100A MPPT, 3000W PV, 12V Battery, WiFi)

The GearUP 2KW Hybrid Solar Inverter is a compact and powerful all-in-one solar energy solution designed for homes, offices, and small commercial setups. It combines an inverter, solar charge controller, and battery charger into a single smart system, ensuring a reliable and uninterrupted power supply.

Key Features

• 2KW Pure Sine Wave Output

  • Provides clean and stable power, safe for sensitive devices like computers, TVs, and networking equipment.

• Built-in 100A MPPT Solar Charge Controller

  • Advanced MPPT technology maximizes solar energy harvesting with high efficiency, ensuring faster battery charging.

• Supports Up to 3000W PV Input

  • Compatible with larger solar arrays, allowing higher energy generation and better system performance.

  • MPPT Voltage Range: 30~400Vdc

  • Max PV Voltage: 450Vdc
  • Max PV charge current: 100A (Maximum allowable) Default: 60A

• Built-in BMS Communication (Lithium Battery Support)

  • Direct communication with lithium battery BMS (via CAN/RS485)

  • Real-time battery data monitoring (voltage, SOC, temperature)

  • Automatic charging/discharging optimization

• 12V Battery System

  • Works with standard 12V batteries (Lead-acid, AGM, GEL, Lithium optional), making it cost-effective and easy to deploy.

• WiFi Monitoring (WiFi Dongle Included)

  • Enables real-time remote monitoring and control via mobile app or web platform.

• Hybrid Operation (Solar + Grid + Battery)

  • Operating Mode and Priority Can be changed Like: Solar > Grid > Battery or Solar >Battery > Grid or Grid > Solar > Battery etc., and automatically switches between solar, battery, and utility power for an uninterrupted supply.

Technical Highlights

• Rated Power: 2000W

• Waveform: Pure Sine Wave

• Solar Charger Type: MPPT

• Max Solar Charge Current: 100A

• Max PV Input Power: 3000W

• Battery Voltage: 12V

• Output Voltage: 220V / 230V AC

• Efficiency: Up to ~95–99.5% (typical hybrid inverter range)



  Switch time	Item	Value	Comments
  Switch time	Line Mode To Battery Mode	10ms (typical)	UPS mode
  		10ms (typical)	Appliance mode

Protection & Safety

• Overload protection

• Short circuit protection

• Over-voltage / under-voltage protection

• Over-temperature protection

• Intelligent battery management

Hybrid inverters typically include comprehensive protection systems to ensure safe and reliable operation in different conditions.
